Supported devices
OpenGD77 devices of the STM32 family:
- TYT
- MD-UV380 / UV390 · MD-380
- Retevis
- RT-3S
- Baofeng
- DM-1701
- Others
- MD-9600 · MD-2017
This page is in English only. The software is used by operators around the world, so a single shared language keeps things simple.
CPS77
CPS77 is a native macOS app (SwiftUI, macOS 14+) for reading and writing the codeplug of OpenGD77 devices — straight over the USB serial port, with no WebUSB detour. It is also the default CPS for FreeTRX.
macOS 14+ v0.3.0 · Build 1002 notarized available
Open the DMG and drag CPS77.app into your Applications folder. Notarized by Apple — it launches without a Gatekeeper warning.
What is it?
CPS77 is built specifically for the Mac, with the look and feel you
expect from macOS. It connects directly to the device (USB-CDC,
/dev/cu.usbmodem…), reads and writes the codeplug, and
comes with a full editor for channels, zones, contacts and talkgroups.
On top of that are the DMR-ID database and
satellite management — both can be filled straight
from the internet and written to the device.
Features
Editor & codeplug
- Read & write the codeplug, auto-connect with auto-read

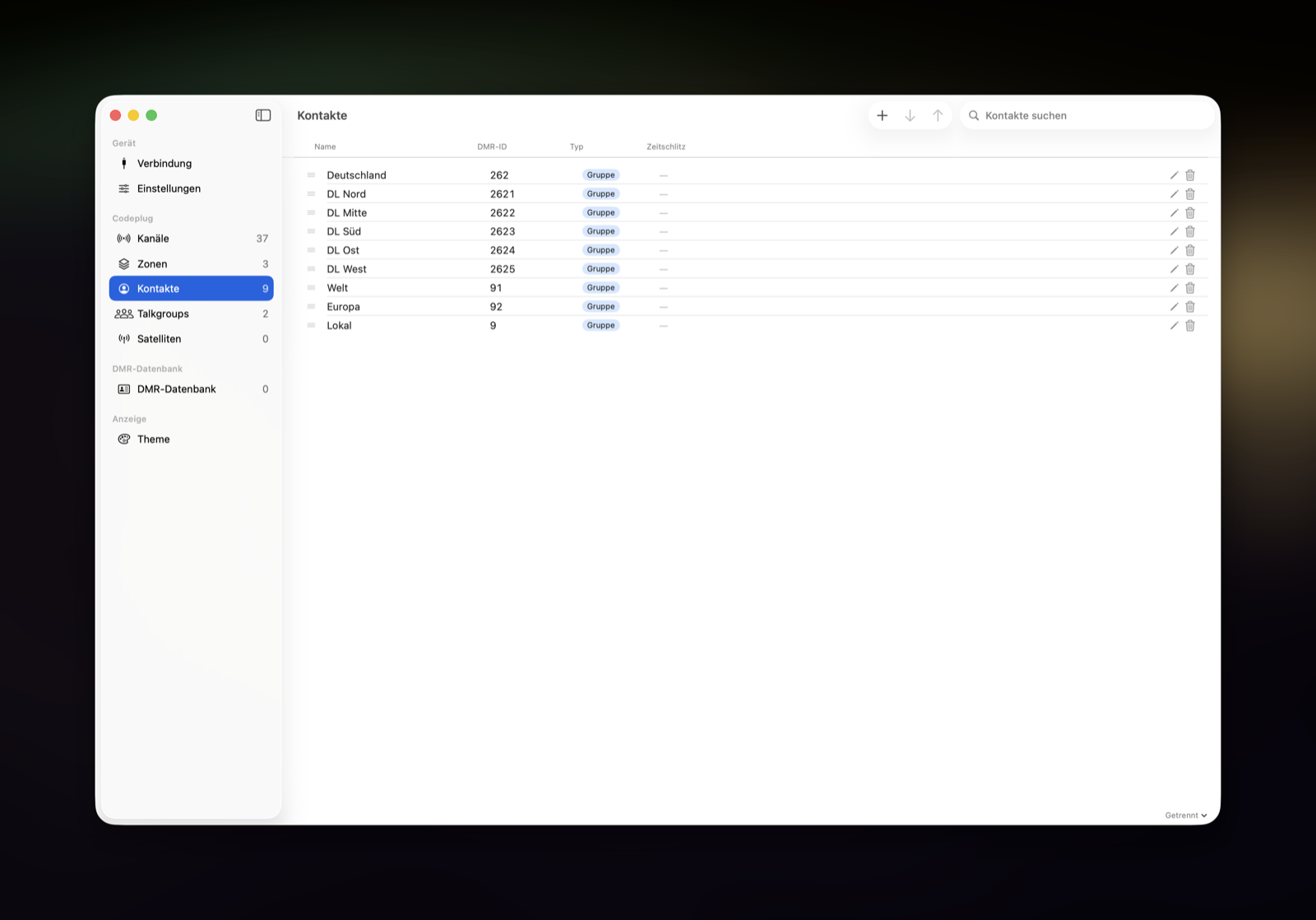

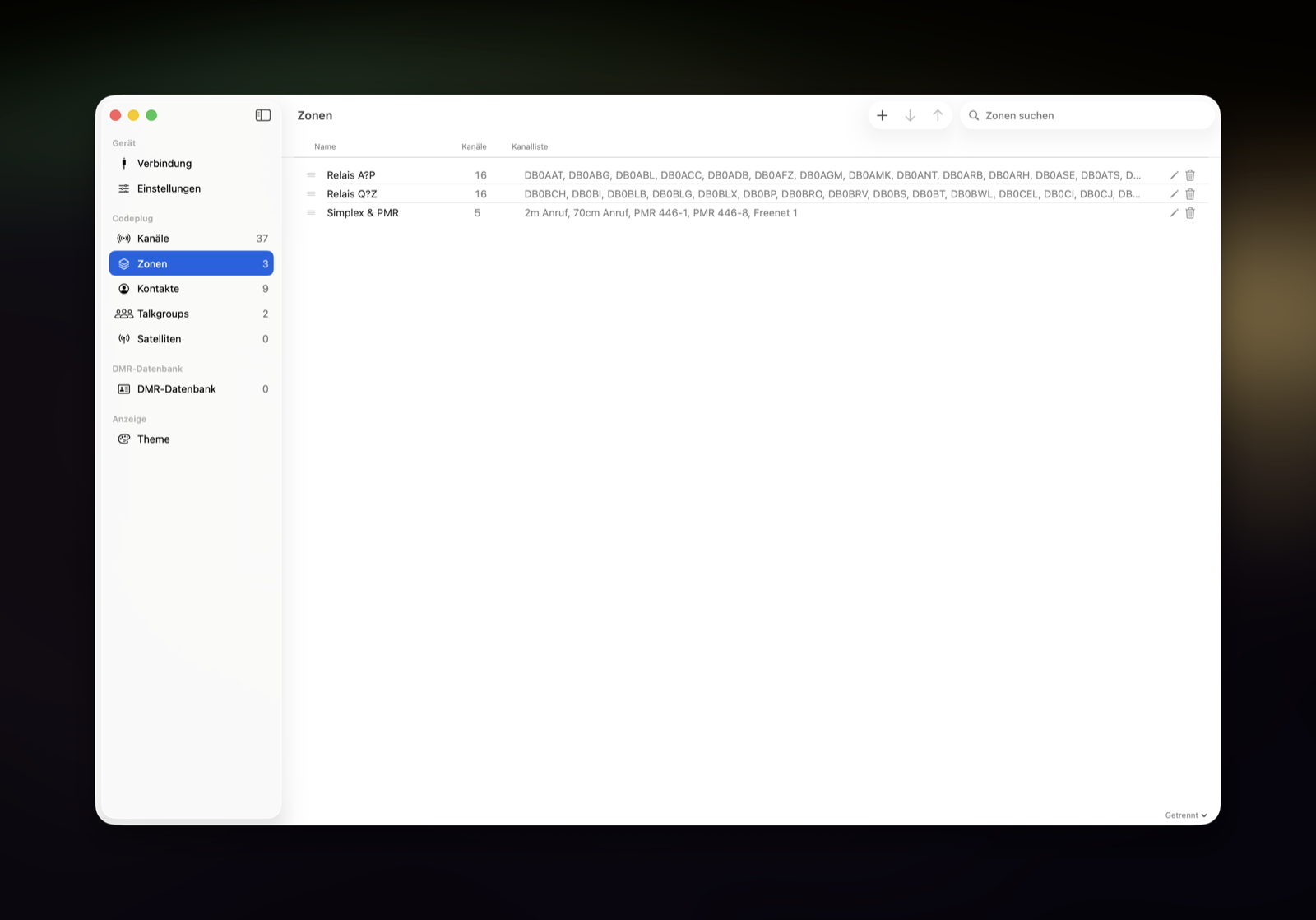

- Editor for channels, zones, contacts & talkgroups (copy/paste, reordering, multi-select)

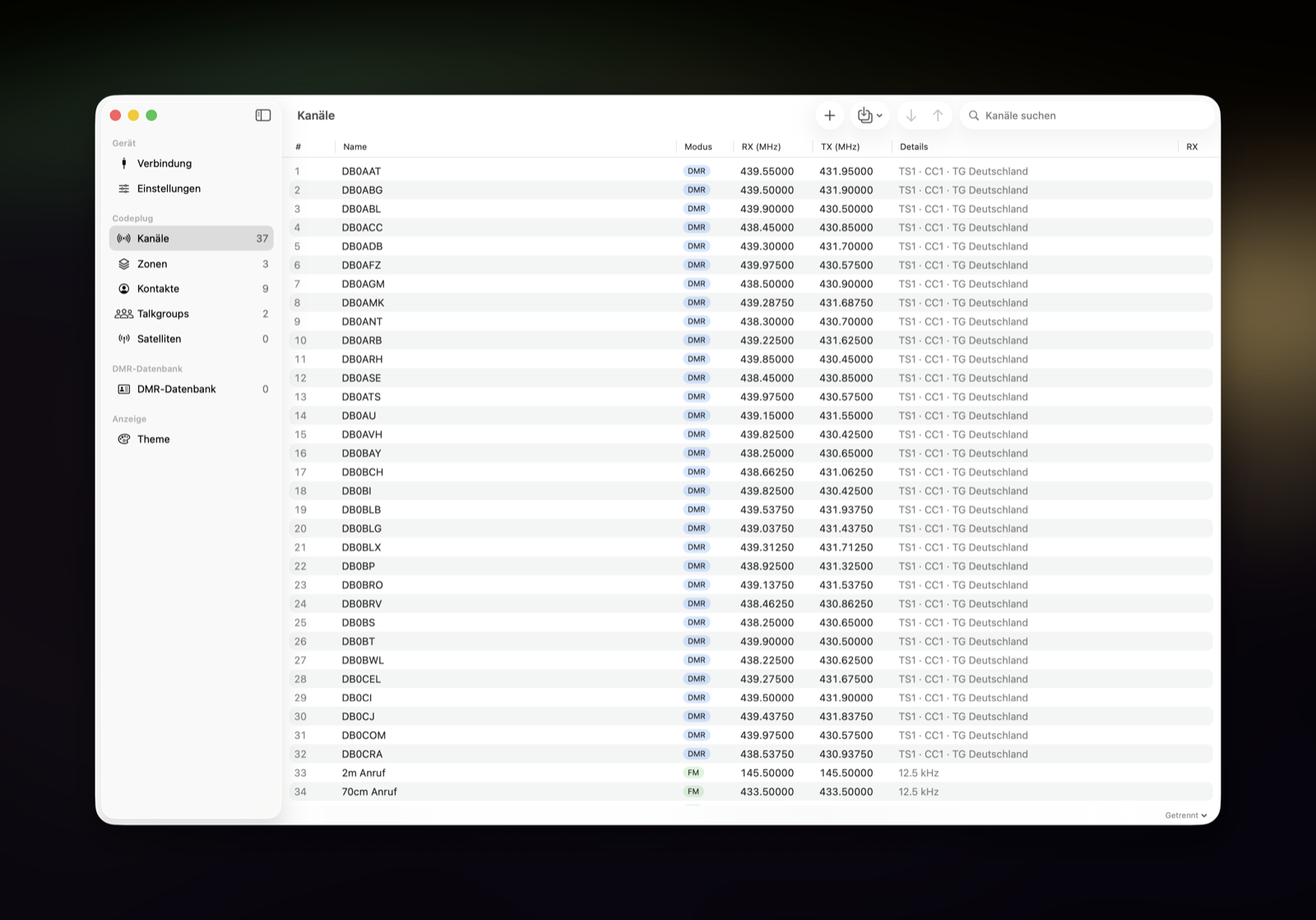

- Channel editor with offset presets, CTCSS/DCS, scan lists, APRS
- Device settings: callsign, DMR ID, band limits
- Theme editor with
.gtmimport/export - Save & open codeplugs as
.cps77

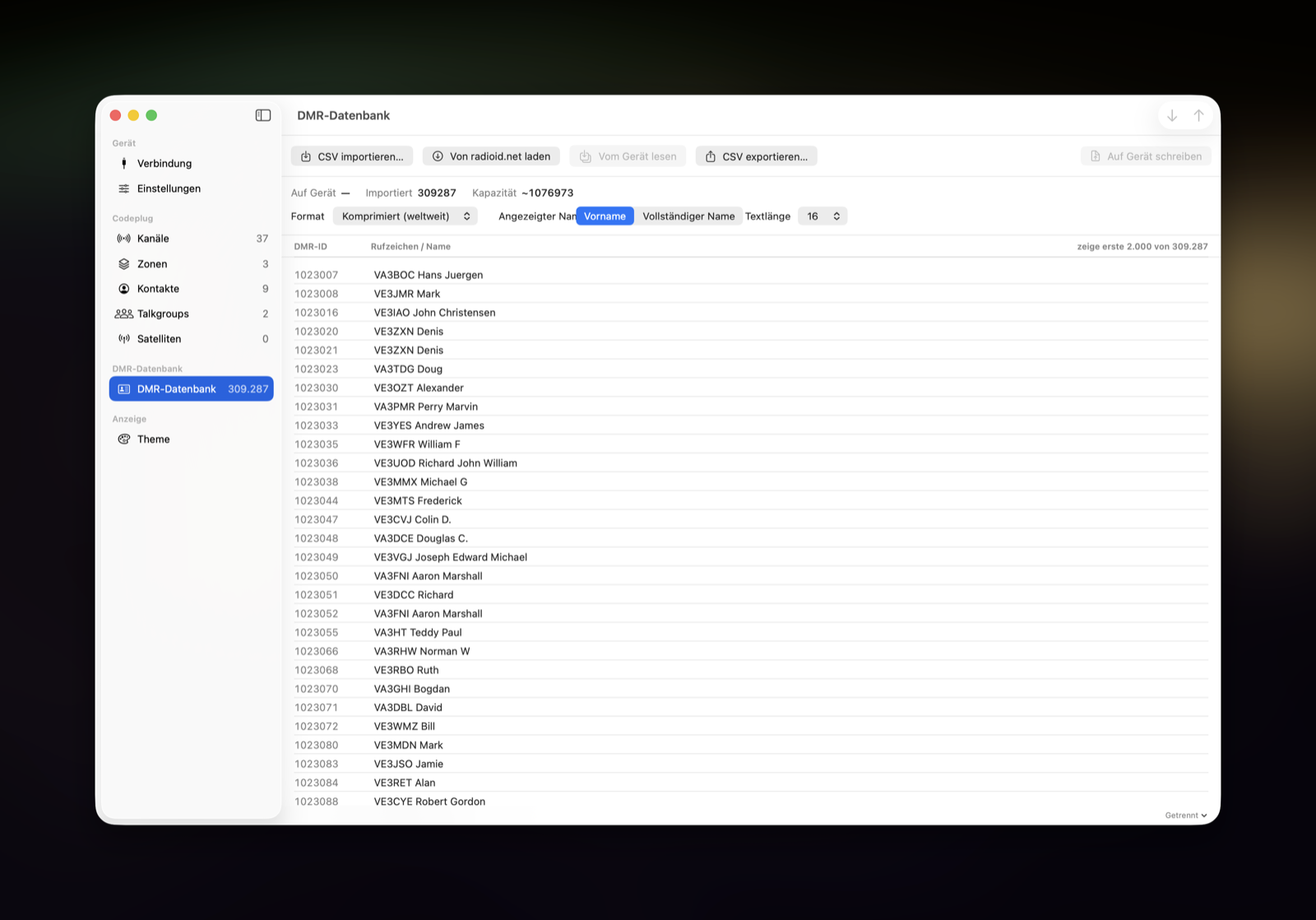

DMR-ID database
- The device's callsign database — its own flash area, separate from the codeplug
- Load directly from radioid.net in the app, or import a
user.csv - Compressed fits the complete worldwide database (~300,000 entries); uncompressed for smaller, curated lists
- Read back from the device (either format) and export as CSV
- Entries stored as
CALLSIGN Name— first or full name, instead of a truncated city - Writing reboots the radio so the firmware re-reads the database
Satellites
- The 25 satellites the firmware tracks — they live in the codeplug and go to the device with the normal write
- Fetch orbital data from amsat.org, frequencies and CTCSS from the SatNOGS database — or import a TLE file
- A picker shows RX/TX and CTCSS, marks satellites already in the codeplug, and caps at the free slots
- FM-only by default — the radio can't work linear/SSB transponders
- Editor per slot: name, RX/TX pairs for voice/APRS, TX and arming CTCSS
- The keps epoch is shown per satellite, so stale orbital data is obvious; re-importing refreshes it
Devices & languages
Interface languages
Available in 8 languages:
English · Deutsch · Polski · Italiano · Español · Français · Nederlands · Português
